Product Details:
Payment & Shipping Terms:
|
| Material: | Magnesium Alloy | Application: | Industry |
|---|---|---|---|
| Shape: | Round Bar | Color: | Metallic |
| Process: | Semi-Casting & Hot Rolling | Sample: | Availiable |
| Chemical Composition: | Magnesium Alloy | Keyword: | Magnesium Alloy Bar |
| High Light: | SGS Certified Magnesium Alloy Bar,Fast Heat Dissipation Magnesium Bar,Good Rigidity Magnesium Round Bar |
||
Fast Heat Dissipation Light Weight Good Rigidity Magnesium Alloy Bar
Magnesium alloy is an alloy composed of magnesium and other elements. Its characteristics are: low density, high specific strength, large elastic modulus, good shock absorption, greater impact load capacity than aluminum alloy, and good corrosion resistance. The main alloying elements are aluminum, zinc, manganese, cerium, thorium and a small amount of zirconium or cadmium. Magnesium-aluminum alloys are currently the most widely used, followed by magnesium-manganese alloys and magnesium-zinc-zirconium alloys.
Magnesium alloy has the lightest specific gravity among all structural alloys, so it can reduce the weight of aluminum or iron parts without reducing the strength of the parts. The specific strength of magnesium alloy is significantly higher than that of aluminum alloy and steel, and the specific stiffness is equivalent to that of aluminum alloy and steel. In the elastic range, when the magnesium alloy is subjected to an impact load, the energy absorbed is greater than that of the aluminum alloy, so the magnesium alloy has good shock resistance and noise reduction performance. Under the same load, the damping performance is 100 times that of aluminum and 300-500 times that of titanium alloy. Good electromagnetic shielding, the casing of 3C products (mobile phone and computer) should be able to provide superior anti-electromagnetic protection, and the magnesium alloy casing can completely absorb electromagnetic interference with a frequency exceeding 100db. Good texture, the appearance and touch texture of magnesium alloy are excellent, which makes the product more luxurious, and it is not easy to corrode in the air.
Magnesium Alloy Chemical Composition:
| Alloy Element | Type | Chemical Composition% | Other elements b | ||||||||||||
| Mg | Al | Zn | Mn | Ce | Zr | Si | Fe | Ca | Cu | Ni | Be | Sub-total | total | ||
| MgAlZn | AZ31B | Balance | 2.5-3.5 | 0.6-1.4 | 0.1-0.2 | --- | --- | ≤0.08 | ≤0.003 | ≤0.04 | ≤0.01 | ≤0.001 | --- | ≤0.05 | ≤0.30 |
| AZ40M | Balance | 3.0-4.0 | 0.2-0.8 | 0.15-0.5 | --- | --- | ≤0.10 | ≤0.05 | --- | ≤0.05 | ≤0.005 | ≤0.01 | ≤0.01 | ≤0.30 | |
| AZ80A | Balance | 7.8-9.2 | 0.2-0.8 | 0.12-0.5 | --- | --- | ≤0.10 | ≤0.005 | --- | ≤0.05 | ≤0.005 | --- | --- | ≤0.30 | |
| AZ91D | Balance | 8.5-9.5 | 0.45-0.9 | 0.17-0.4 | --- | --- | ≤0.08 | ≤0.004 | --- | ≤0.025 | ≤0.001 | 0.0005- | ≤0.01 | ≤0.30 | |
| 0.003 | |||||||||||||||
| MgMn | M2M | Balance | ≤0.20 | ≤0.30 | 1.3-2.5 | --- | --- | ≤0.10 | ≤0.05 | --- | ≤0.05 | ≤0.007 | ≤0.01 | ≤0.01 | ≤0.20 |
| MgZnZr | ZK61M | Balance | ≤0.05 | 5.0-6.0 | ≤0.10 | --- | 0.3-0.9 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.005 | ≤0.01 | ≤0.01 | ≤0.30 |
| MgMnRe | ME20M | Balance | ≤0.20 | ≤0.30 | 1.32-2.2 | 0.15-0.35 | --- | ≤0.10 | ≤0.05 | --- | ≤0.05 | ≤0.007 | ≤0.01 | ≤0.01 | ≤0.30 |
Processing technology:
Compared with traditional magnesium alloy, Semi-continuous casting has higher strength and extensibility on its organization and composition.
1. Magnesium liquid pouring directly from the holding furnace and making it rapidly crystallization by pipetting and twice refining with high purity and less impurity. it can improve the compactness of the inner metallurgical structure of magnesium rod and make its a more reasonably inner densification crystallization. And the physical nature is greatly enhanced comparing to the traditional casting products.
2. The impurities in rhyolite even tends to zero in the molding product. semi continuous casting magnesium alloy adopts new inert gas protection device, which greatly reducing the amount of entrapped slag and improving the product quality . in the traditional process , the smelting process is completely exposed to the air, which can only inflaming retarding by rholite etc.
3. The surface is smooth and clean, no porosity, no shrinkage, no slag inclusion.
4. The length is flexible. Its existing maximum diameter is Φ600mm. it can be peeled, cut as customized. In addition, we also can produce other different specification product to meet customers’requirement. Various of specifications of magnesium ally flat bar can be semi continuous cast.
Product advantages:

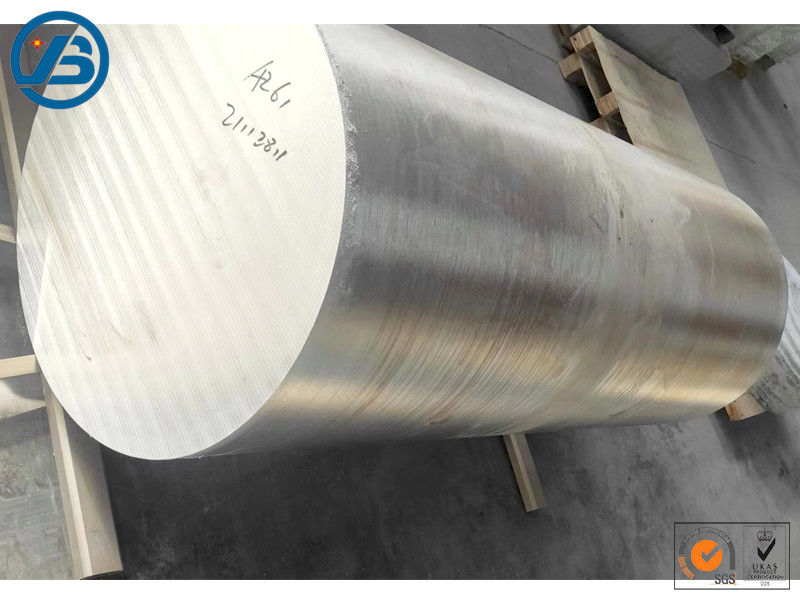

Magnesium Alloy bar Picture show:
Specification:
| Name | Type | specification | Remarks |
| magnesium alloy | AZ31B | Casting round bar billet(Φ3-160*3000) | According to the requirements of sawing and heat treatment |
| ZK61M/ZK60 | |||
| AZ80A | |||
| AZ91D | |||
| M2M | |||
| ME20M AZ40 |
Magnesium Alloy Chemical composition:
| Alloy Element | Type | Chemical Composition% | Other elements b | ||||||||||||
| Mg | Al | Zn | Mn | Ce | Zr | Si | Fe | Ca | Cu | Ni | Be | Sub-total | total | ||
| MgAlZn | AZ31B | Balance | 2.5-3.5 | 0.6-1.4 | 0.1-0.2 | --- | --- | ≦0.08 | ≦0.003 | ≦0.04 | ≦0.01 | ≦0.001 | --- | ≦0.05 | ≦0.30 |
| AZ40M | Balance | 3.0-4.0 | 0.2-0.8 | 0.15-0.5 | --- | --- | ≦0.10 | ≦0.05 | --- | ≦0.05 | ≦0.005 | ≦0.01 | ≦0.01 | ≦0.30 | |
| AZ80A | Balance | 7.8-9.2 | 0.2-0.8 | 0.12-0.5 | --- | --- | ≦0.10 | ≦0.005 | --- | ≦0.05 | ≦0.005 | --- | --- | ≦0.30 | |
| AZ91D | Balance | 8.5-9.5 | 0.45-0.9 | 0.17-0.4 | --- | --- | ≦0.08 | ≦0.004 | --- | ≦0.025 | ≦0.001 |
0.0005- |
≦0.01 | ≦0.30 | |
| MgMn | M2M | Balance | ≦0.20 | ≦0.30 | 1.3-2.5 | --- | --- | ≦0.10 | ≦0.05 | --- | ≦0.05 | ≦0.007 | ≦0.01 | ≦0.01 | ≦0.20 |
| MgZnZr | ZK61M | Balance | ≦0.05 | 5.0-6.0 | ≦0.10 | --- | 0.3-0.9 | ≦0.05 | ≦0.05 | --- | ≦0.05 | ≦0.005 | ≦0.01 | ≦0.01 | ≦0.30 |
| MgMnRe | ME20M | Balance | ≦0.20 | ≦0.30 | 1.32-2.2 | 0.15-0.35 | --- | ≦0.10 | ≦0.05 | --- | ≦0.05 | ≦0.007 | ≦0.01 | ≦0.01 | ≦0.30 |
Advantage of Hilbo company:
Full range of product types, Ensure production capacity
We ave advanced die-casting, extrusion, forging, rolling, casting processing production line and precision testing equipment. Can produce a variety of types of magnesium alloy and magnesium alloy products, and developed a high-strength magnesium alloy extruded sheet. Through the purification of ordinary magnesium, magnesium can be raised up to 99.99% of high purity.
Cost advantage
Magnesium alloy casting production can customized as your requirement. the technical process is great, extrusion production required for a variety of bar, no need to purchase from abroad, extrusion molding products is easy molding, low energy consumption, saving production costs.
Workshop:
Product technology advantages
Engaged in magnesium smelting technology personnel with more than 15 years experience, from the selection of primary materials to smelting processing has a wealth of experience and mature management techniques.
We are in magnesium ingots, magnesium alloy extrusion products have technical research and development capabilities. We are come out in front in the Magnesium alloy production enterprises
Testing Equipment
Our services:
1. Small order quantity available
2. Professional engineering team and sales team
3. Payment: T/T & Western Union
4. OEM/ODM Supporttable
5. Free samples provided
6. Competitive price and high quality
Certificate:
We have attained ISO9001 and ISO14001 certificates, Standardize and improve the enterprise quality management system.
FAQ:
1.Why us?
We specialized in this line for 10 years, We will provide you with all good service, best products and best prices.
2.Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but do not pay the cost of freight. Or we can discuss according to true situation.
3.Do you accept customed?
Yes, we can according to your unit weight or drawings processing.
4.Do you inspect the finishing products?
Yes, each product will be inspected by our QC before shipping.
