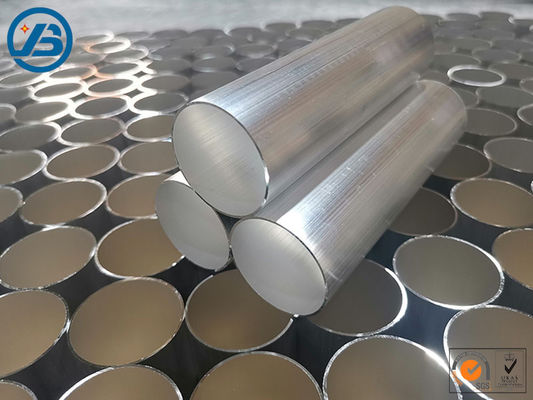

Magnesium Alloy Pipe Low Internal Stresses And Distortions Fast Heat Dissipation

Magnesium Alloy Pipe Low Internal Stresses And Distortions Fast Heat Dissipation
Magnesium Alloy Pipe Low Internal Stresses And Distortions Fast Heat Dissipation Magnesium Alloy Pipe Low Internal Stresses And Distortions Fast Heat Dissipation Magnesium Alloy Pipe Low Internal Stresses And Distortions Fast Heat Dissipation

Large Image :  Magnesium Alloy Pipe Low Internal Stresses And Distortions Fast Heat Dissipation

Product Details:
Place of Origin: China
Brand Name: Hilbo
Certification: ISO9001, CE, SGS
Model Number: AZ31 ,AZ61
Payment & Shipping Terms:
Minimum Order Quantity: 100KG
Price: USD10~30/KGS
Packaging Details: In carton, on pallet
Delivery Time: 5-10 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100mt/month
Detailed Product Description
Material: Magnesium Alloy Chemical Composition: Magnesium 95% Min
Color: Shining Silver, Black, Red Shape: Round, Square
Type: MIC, High Potential, AZ63C, AZ31 Standard: American Standard, ASTM G-97
Wall Thickness: 2-40 Mm Or As Required Usage: Construction Industry
High Light:

95% Min Magnesium Alloy Pipe

,

AZ61 Magnesium Alloy Pipe

,

95% Min Magnesium Alloy Tube

Magnesium Alloy Pipe Low Internal Stresses And Distortions Fast Heat Dissipation​



magnesium alloy pipe ,Magnesium square tube,magnesium special pipes Main Application Mainly been used into Aircraft.Aerospace,jigs, fixtures, optical benches,.shape including round,square,or special shape. Advantage of magnesium: Magnesium is approximately two thirds the density of aluminium and a quarter that of steel.


Physical Properties



Density: 1.78;

Coefficient of thermal expansion: 26.8 x 10-6K-1

Specific heat: 1040 Jkg-1k-1

Thermal conductivity: 76.9Wm-1k-1

Electrical resistivity: 92nΩm

Modulus of elasticity: 45 x 109Pa;

Poissons ratio: 0.35;

Melting range: 566 – 632°C



Mechanical properties :



Tension strength :280MPA

Yiled strength :190Mpa

Elongation :13%



Magnesium tube Producing Process:



Magnesium Alloy Tube is produced by process semi- continuous casting into billet and then extruded process.

Semi- continuous casting is usually using vertical casting and is colded by constant temperature well water under around during casting processing. Making casting completely into slabs(billets) that have very small grain and very tight spacing between grain and grain.



Main Features:



Magnesium Alloy functions

1. High mechanical stability

2. High damping capacity

3. Low internal stresses and distortions

4. Good heat conductivity

5. Good machining properties

For mg alloy Tube ,the material used mostly is AZ31B

AZ31B Chemical Composition

Al: 2.5-3.5%; Zn: 0.7-1.3%; Mn: 0.20 – 1.0%; Mg: Balance





Advantage of magnesium:



Magnesium is approximately two thirds the density of aluminium and a quarter that of steel. The magnesium alloys we supplied have improved resistance to corrosion and better all round mechanical properties, especially at elevated temperature. Usually Magnesium alloy is divided into two types: casting alloys and deformation alloys. The after include both extruded sections and rolled sheet/plate along with tubes and forgings ,for tube or pipe ,we using deformation alloys


Specification:



Grade:  AZ31 ,AZ61
Shape: Roud, Bar, Solid Shapes, Tube, Hollow shapes,Semi-hollow shapes,Wire

Application: lighter than aluminium,mainly same application as aluminium, construction, sports & leisure, transportation, household appliances.


Magnesium Alloy Pipe Low Internal Stresses And Distortions Fast Heat Dissipation 0

some details of Magnesium Alloy Pipe/Tube AZ31b:



Item Magnesium Alloy Pipe/Tube az31b
Material Magnesium Pipe/Tube
Thickness as customer's required
Width as customer's required
length as customer's required
size customized


Magnesium Alloy Pipe Low Internal Stresses And Distortions Fast Heat Dissipation 1

The casting line of magnesium alloy pipe has high dimensional accuracy and can be processed with high precision. Magnesium alloy has good die-casting forming performance, and the wall thickness of die-casting parts can be as small as 0.5mm. It is suitable for manufacturing various die-casting parts of automobiles. Dongguan magnesium alloy tube prices Dongguan magnesium alloy tube suppliers have advantages in heat dissipation relative to alloys: according to the formula: q = dvc△t where q-heat; d = specific gravity; v = volume; c = specific elasticity Within the range, when the magnesium alloy is subjected to an impact load, the energy absorbed is half larger than that of the aluminum alloy parts, so the magnesium alloy has good shock resistance and noise reduction performance. Recycle and reuse.


Magnesium Alloy Pipe Low Internal Stresses And Distortions Fast Heat Dissipation 2
Product advantages:

1. Light weight. Magnesium metal is the lightest metal material in the world .
2. High specific strength .magnesium alloy has a high strength and quality, it also has a certain bearing capacity.
3. small modulus of elasticity. has better strength and anti-seismic and not easily distortion .
4. Good anti electromagnetic interference and shield .
5. Non pollution and recycle.
6. Stable dimensionally and easy processing .

Magnesium Alloy Pipe Low Internal Stresses And Distortions Fast Heat Dissipation 3
Advantage of Hilbo company:

Full range of product types, Ensure production capacity

We ave advanced die-casting, extrusion, forging, rolling, casting processing production line and precision testing equipment. Can produce a variety of types of magnesium alloy and magnesium alloy products, and developed a high-strength magnesium alloy extruded sheet. Through the purification of ordinary magnesium, magnesium can be raised up to 99.99% of high purity.

Cost advantage

Magnesium alloy casting production can customized as your requirement. the technical process is great, extrusion production required for a variety of bar, no need to purchase from abroad, extrusion molding products is easy molding, low energy consumption, saving production costs.

Workshop:
Magnesium Alloy Pipe Low Internal Stresses And Distortions Fast Heat Dissipation 4
Magnesium Alloy Tube advantages


Engaged in magnesium smelting technology personnel with more than 15 years experience, from the selection of primary materials to smelting processing has a wealth of experience and mature management techniques.
We are in magnesium ingots, magnesium alloy extrusion products have technical research and development capabilities. We are come out in front in the Magnesium alloy production enterprises


Our services:


1. Small order quantity available
2. Professional engineering team and sales team
3. Payment: T/T & Western Union
4. OEM/ODM Supporttable
5. Free samples provided
6. Competitive price and high quality

Certificate:

We have attained ISO9001 and ISO14001 certificates, Standardize and improve the enterprise quality management system.

Magnesium Alloy Pipe Low Internal Stresses And Distortions Fast Heat Dissipation 5





Certificate:

We have attained ISO9001 and ISO14001 certificates, Standardize and improve the enterprise quality management system.

Magnesium Alloy Pipe Low Internal Stresses And Distortions Fast Heat Dissipation 6



Our main products and capacities are as follows:

1. Magnesium tooling plate: Max. Thickness: 300mm; Max. Width: 3000mm; Max. Length: 6000mm
2. Magnesium alloy slab: Max. Size: 400 x 1000 x 2500mm
3. Magnesium alloy sheet: Min. Thickness: 0.5mm; Max. Width: 600mm; Max. Length: 2000mm
4. Magnesium cast bar: Min. Diameter 90mm; Max. Diameter: 600mm; Max. Length: 6000mm
5. Magnesium extrusions:
Round tube: Max. OD 600mmx thickness 125mm Square tube: 430 x 430mm Flat bar: 920 x 160mm
U-Shape: 800 x 300mm Rectangular: 700 x 200mm
6. Magnesium alloy machined part according to customer’s design
7. Magnesium anode as per customer’s design
