Product Details:
Payment & Shipping Terms:
|
| Name: | AZ80A Magnesium Alloy Bar | Form: | Rod / Bar / Billet |
|---|---|---|---|
| Surface: | Smooth Surface | Material: | Magnesium, Magnesium Alloy |
| Purity: | >98% | Application: | Industry |
| Size: | Accept Custom | Certificate: | ISO9001 |
| Chemical Composition: | Mg Al Zn Mn | Produce: | Hot Roll, Casting, Extruding |
| Color: | Silvery | ||
| High Light: | Aerospace Industry Magnesium Alloy Bar,Length 1000mm Magnesium Alloy Bar,AZ80A Magnesium Metal Rod |
||

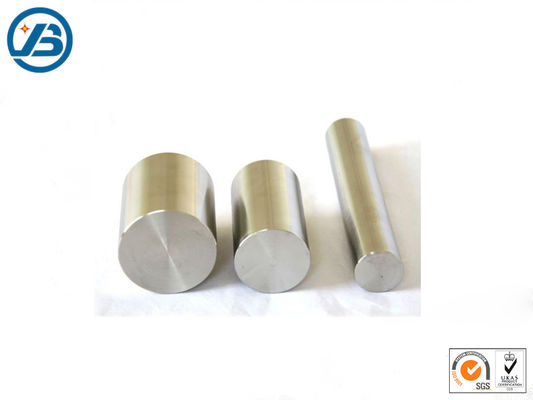

AZ80A Aerospace And Automotive Industry Magnesium Alloy Bar Rod
Details:
Name: magnesium alloy bar,dissolvable magnesium bar.
Specification: Ø50mm,Ø60mm,Ø70mm,Ø80mm,Ø90mm,Ø100mm…..Or customized according to customer requirements.
| Hilbo magnesium alloy material Co., Ltd. | ||||||||||||||
| Quality Inspection Report | ||||||||||||||
| NO:JB/MS03-151-1236 | ||||||||||||||
| Model | Specifications | Process | Furnace No. | Chemical Composition (%) | Low power test | |||||||||
| Al | Zn | Mn | Fe | Si | Cu | Ni | Mg | Low power | Surface quality | Size | ||||
| Ø80*1000 | Extrussion | 9850 | 8.5 | 0.60 | 0.3 | 0.005 | 0.1 | 0.05 | 0.005 | Balance | OK | OK | OK | |
| AZ80A H112 |
||||||||||||||
| Magnesium alloy bar | ||||||||||||||
| Tensile strength Rm /Mpa |
Yield strength 0.2% Mpa |
Elongation at break % | ||||||||||||
| 295 | 190 | 5 | ||||||||||||
| Conclusion :Passed inspection | ||||||||||||||
AZ80A Magnesium Alloy Magnesium is an alloy composed of added elements. Its characteristics are: low density (about 1.8g/cm3 magnesium alloy), high specific strength, high specific modulus of elasticity, good heat dissipation, good shock absorption, high impact resistance, and good resistance to organics and alloys. . And magnesium zinc alloy. Mainly used in aviation, aerospace, transportation, chemical, rocket and other industrial sectors. In the light of metal applications, the specific gravity of magnesium is 2/3 of that of aluminum and 1/4 of that of iron. It is a light metal among practical metals, with high binding strength and high lead.
Performance test data:
| No. | Model | Test condition | Dissolution rate mg/(cm2*h)) |
Strength of extension(MPa) | Yield strength(MPa) | Elongation (%) |
Hardness (HB) |
| 1 | HB006 | 93℃/3%KCl | 50-70 | ≥370 | ≥260 | ≥2.5 | ≥90 |
| 2 | HB006A | 93℃/3%KCl | 50-70 | ≥310 | ≥220 | ≥6.0 | ≥75 |
| 3 | HB008 | 93℃/3%KCl | 40-60 | ≥400 | ≥300 | ≥4.0 | ≥100 |
| 4 | HB008B | 93℃/3%KCl | 40-60 | ≥370 | ≥270 | ≥5 | ≥100 |
| 5 | HB008C | 93℃/3%KCl | 40-60 | ≥310 | ≥220 | ≥15 | ≥85 |
| 6 | HB012 | 93℃/3%KCl | 40-60 | ≥400 | ≥300 | ≥3.0 | ≥100 |
| 7 | HB011 | 93℃/3%KCl | 15-35 | ≥420 | ≥300 | ≥3.0 | ≥100 |
| 8 | HB016 | 93℃/3%KCl | 35-55 | ≥280 | ≥180 | ≥15 | ≥60 |
| 9 | HB017 | 93℃/3%KCl | 40-50 | ≥200 | ≥140 | ≥17 | ≥55 |
| 10 | HB018K | 50℃/0.84KCl | 50-70 | ≥240 | ≥170 | ≥12 | ≥55 |
| 11 | HB018 | 50℃/0.84KCl | 30-50 | ≥230 | ≥170 | ≥12 | ≥55 |
| 12 | HB010 | 93℃/3%KCl | 15-35 | ≥190 | ≥120 | ≥30 | ≥45 |
| 13 | HB022 | 43℃/0.05%KCl | 50-60 | ≥300 | ≥200 | ≥5.0 | ≥75 |
| 14 | HB023 | 43℃/0.05%KCl | 20-40 | ≥280 | ≥200 | ≥7.5 | ≥65 |
| 15 | HB024 | 43℃/0.05%KCl | 50-70 | ≥260 | ≥220 | ≥5 | ≥60 |
| 16 | HB013A | 43℃/0.05%KCl | 80-100 | ≥260 | ≥230 | ≥3.5 | ≥75 |
| 17 | HB025 | 50℃/0.84%KCl | 90-110 | ≥275 | ≥200 | ≥12 | ≥65 |
| 18 | HB026 | 93℃/3%KCl | 20-40 | ≥450 | ≥350 | ≥3.0 | ≥110 |
| 19 | HB808 | 50℃/0.84%KCl | 50-70 | ≥370 | ≥260 | ≥3.0 | ≥100 |
| 20 | HB019 | 50℃/0.84KCl | 45-65 | ≥230 | ≥180 | ≥12.0 | ≥55 |
| 21 | HB055 | 93℃/3%KCl | 130-150 | ≥220 | ≥160 | ≥12.0 | ≥55 |
| 22 | HB035 | 93℃/3%KCl | 50-100 | ≥100 | ≥60 | ≥42.0 | ≥35 |
| 23 | HBMM6 | 50℃/0.84%KCl | 70-100 | ≥260 | ≥230 | ≥10.0 | ≥60 |
| 24 | HBMM7 | 50℃/0.84%KCl | 90-120 | ≥270 | ≥240 | ≥9.0 | ≥65 |
| 25 | HBMM8 | 93℃/3%KCl | 100-150 | ≥280 | ≥250 | ≥5.0 | ≥65 |
Advantage of Hilbo Company:
Full range of product types, Ensure production capacity
We ave advanced die-casting, extrusion, forging, rolling, casting processing production line and precision testing equipment. Can produce a variety of types of magnesium alloy and magnesium alloy products, and developed a high-strength magnesium alloy extruded sheet. Through the purification of ordinary magnesium, magnesium can be raised up to 99.99% of high purity.
Cost advantage
Magnesium alloy casting production can customized as your requirement. the technical process is great, extrusion production required for a variety of bar, no need to purchase from abroad, extrusion molding products is easy molding, low energy consumption, saving production costs.
Workshop:
Testing Equipment
Our Services:
1. Small order quantity available
2. Professional engineering team and sales team
3. Payment: T/T & Western Union
4. OEM/ODM Supporttable
5. Free samples provided
6. Competitive price and high quality
Certificate:
We have attained ISO9001 and ISO14001 certificates, Standardize and improve the enterprise quality management system.
FAQ:
Q1: WHAT'S YOUR PAYMENT TERM?
A1: We accept TT, L/C and west union or you can pay through Alibaba.
Q2: DO YOU HAVE AFTER-SALE SERVICE?
A2: Our quality and service is our life, so even after your buying, we still offer free after sale service.
Q3: HOW LONG IS YOUR DELIVERY TIME?
A3: Our delivery time is 5-30 days after payment.
Q5: DO YOU OFFER OEM SERVICE?
A5: Yes, OEM is welcome.
