5mm Etching Magnesium Photoengraving Plate 3-10mm AZ31 For Foil Stamping


5MM Etching Magnesium Photoengraving Plate AZ31, Magnesium Alloy Plate

Precision Magnesium Engraving Plates are lightweight, fast etching and environmentally friendly. They are used for foil stamping, embossing, thermal dies, flexography, plaques, awards, rubber stamp masters, fabric and leather embossing. Etching magnesium plate, nitric acid corrosion, the surface can generate a layer of dense, continuous oxide layer, to prevent the internal magnesium metal to continue the reaction. long-term placed in the air, will not corrode.​


Exposure
Halftone screen “9” is OK to obtain a correct exposure. For fine form, “11” is enough.
400-600mJ/cm2 is required for exposure.

Development

Put the exposed plate into 1% sodium hydroxide (NaOH) aqueous solution for 8-10 seconds, or into 5% sodium carbonate (Na2CO3)

aqueous solution or Hydro-Solve developer concentrate for 1 minute, in temperature 300C,then take out the plate from the solution,

wash and wipe it with sponge in clean water softly.

Repeat above step to develop again if the plate is not clear enough.

Then dry it with compressed air or by absorbent paper.

A faster developing will happened while the solution was heated.

Touch-Up

Touch it if necessary, no “Burn-in” is needed.

Weight

Record the weight in log.

Descum

Put the plate into 3% Nitric acid (HNO3) aqueous solution in room temperature and brush it lightly, then wash it with clean water.

Protect
To prevent oxidation, uniformly wet the plate immediately with Express Guard plate protector or Arabic gum aqueous solution before
clamping it on the lid of the etchin machine.

Etching

Follow the instructions by the machine producer to etch the plate.

Bath formula: Nitric Acid 41.8oBe’ 19% by volume

etch Additive 4% by volume

water 77% by volume

Machine data: paddle Depth 8-10mm

paddle speed 380 rpm

starting temperature 28oC

plate holder 6-8 rpm

Etching speed: 1mm per 7 minutes for a new bath

The paddle speed and starting temperature should be adjusted according to the variety of the sidewall in the following etching process.

After etching, wash the plate with water or tri-sodium phosphate aqueous solution, then dry it.

Replenish acid

Weight the plate to calculate the magnesium dissolved, then replenish Nitric acid accordingly, about 160ml Nitric acid corresponding

1 ounce of magnesium. Do not forget to check the dip gauge.

Top removal

Soak the plate in a 10% sodium hydroxide (NaOH) aqueous solution or in top remover concentrate solution in temperature 30OC

about 3 minutes, then remove and brush it with water.

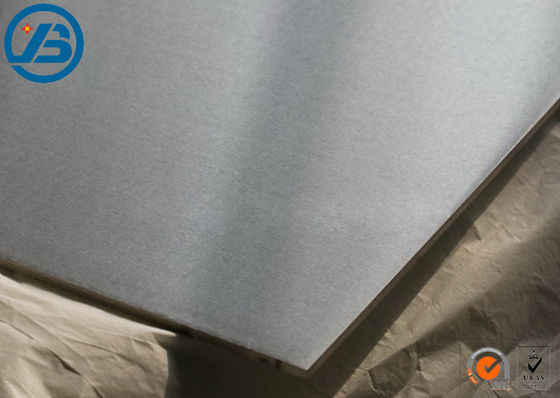

Magnesium photoengraving plate Picture show:





Advantage of Hilbo company:
Full range of product types, Ensure production capacity:
We ave advanced die-casting, extrusion, forging, rolling, casting processing production line and precision testing equipment. Can produce a variety of types of magnesium alloy and magnesium alloy products, and developed a high-strength magnesium alloy extruded sheet. Through the purification of ordinary magnesium, magnesium can be raised up to 99.99% of high purity.
Cost advantage:
Magnesium alloy casting production can customized as your requirement. the technical process is great, extrusion production required for a variety of bar, no need to purchase from abroad, extrusion molding products is easy molding, low energy consumption, saving production costs.
Workshop


Product technology advantages:
Engaged in magnesium smelting technology personnel with more than 15 years experience, from the selection of primary materials to smelting processing has a wealth of experience and mature management techniques.
We are in magnesium ingots, magnesium alloy extrusion products have technical research and development capabilities. We are come out in front in the Magnesium alloy production enterprises
Certificate:
We have attained ISO9001 and ISO14001 certificates, Standardize and improve the enterprise quality management system.

Our Services:
1. Small order quantity available
2. Professional engineering team and sales team
3. Payment: T/T & Western Union
4. OEM/ODM Supporttable
5. Free samples provided
6. Competitive price and high quality

FAQ:
1. Q: Are you a factory or trading company?
A: We are direct manufacturer located in guangdong province, and have our equipment!
2. Q: Are your products customized?
A: Yes,the products in the website are only the common type or the previous types, we can supply the new products according to your requirements or drawings.
3. I do not know how to use your product ?
Do not worry ! We can supply technical guidance together with products.
4. Q: How can I get some samples?
A: Several samples are freely offered for buidling the business long-term relationships and letting our customers believing the quality of our products.
5. Q: How does your factory do regarding quality control?
A: Our factory passed CE, ISO, ROSH, UL certification.
