Product Details:
Payment & Shipping Terms:
|
| Name: | AZ61A Magnesium Alloy Bar | Form: | Round Bar,rod |
|---|---|---|---|
| Surface: | Smooth Surface | Material: | Magnesium Alloy |
| Purity: | >98% | Application: | Aircraft, Bycicles, Car,Military, Computer |
| Certificate: | ISO9001 | Process: | Hot Rolled / Extruded / Cold Drawn |
| Size: | Length Is Required Of Customer | Chemical Composition: | Mg,al ,Mn,Zn,Si,Cu,Ni,Fe |
| High Light: | Diameter 80mm Magnesium Alloy Bar,1000mm Length Magnesium Alloy Bar,SGS Extrusion Bar |
||

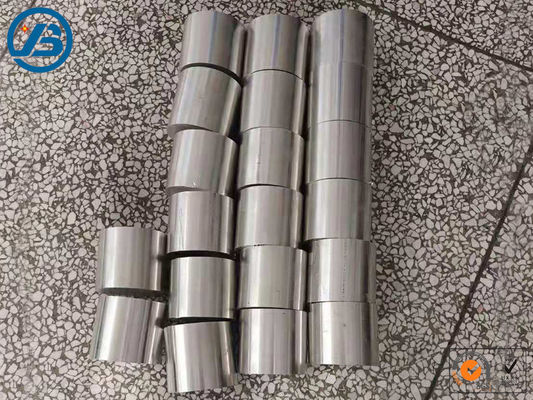

Magnesium Alloy Bar Extrusion Bar Without Defects For Industrial Applications
Details:
Name: magnesium alloy bar,dissolvable magnesium bar.
| Hilbo magnesium alloy material Co., Ltd. | ||||||||||||||
| Quality Inspection Report | ||||||||||||||
| NO:JB/MS03-150-1880 | ||||||||||||||
| Model | Specifications | Process | Furnace No. | Chemical Composition (%) | Low power test | |||||||||
| Al | Zn | Mn | Fe | Si | Cu | Ni | Mg | Low power | Surface quality | Size | ||||
| Ø80*1000 | Extrussion | 9537 | 6.5 | 0.83 | 0.40 | 0.005 | 0.1 | 0.05 | 0.005 | Balance | OK | OK | OK | |
| AZ61A | ||||||||||||||
| Magnesium alloy bar | ||||||||||||||
| Tensile strength Rm /Mpa |
Yield strength 0.2% Mpa |
Elongation at break % | ||||||||||||
| 280 | 170 | 8 | ||||||||||||
Feature and Custom
| Item | Magnesium Alloy Rod / Bar AZ61A | ||||
| Material | Magnesium Rod | ||||
| Thickness | as customer's required | ||||
| Width | as customer's required | ||||
| length | as customer's required | ||||
| size | customized | ||||
| Features of Magnesium Alloy Rod / Bar | 1. fast heat dissipation,light,good rigidity | ||||
| 2. Good corrosion resistance and dimensional stability | |||||
| 3. Good impact resistance and wear resistance | |||||
| 4. Good absorption of vibration energy performance | |||||
| 5. high thermal and conductive properties | |||||
| 6. non magnetic, good shielding and non-toxic characteristics. | |||||
Application
Transportation (automobiles, motorcycles, bicycles, rail transit, aviation); electronic products (computers, mobile phones,
digital cameras, etc.); medical equipment (wheelchairs, crutches, rehabilitation fitness equipment, etc.) aerospace; textile High
standards and diversified demands in the fields of printing machinery and automobiles.
Our Services:
1. Small order quantity available
2. Professional engineering team and sales team
3. Payment: T/T & Western Union
4. OEM/ODM Supporttable
5. Free samples provided
6. Competitive price and high quality
Performance test data:
| No. | Model | Test condition | Dissolution rate mg/(cm2*h)) |
Strength of extension(MPa) | Yield strength(MPa) | Elongation (%) |
Hardness (HB) |
| 1 | HB006 | 93℃/3%KCl | 50-70 | ≥370 | ≥260 | ≥2.5 | ≥90 |
| 2 | HB006A | 93℃/3%KCl | 50-70 | ≥310 | ≥220 | ≥6.0 | ≥75 |
| 3 | HB008 | 93℃/3%KCl | 40-60 | ≥400 | ≥300 | ≥4.0 | ≥100 |
| 4 | HB008B | 93℃/3%KCl | 40-60 | ≥370 | ≥270 | ≥5 | ≥100 |
| 5 | HB008C | 93℃/3%KCl | 40-60 | ≥310 | ≥220 | ≥15 | ≥85 |
| 6 | HB012 | 93℃/3%KCl | 40-60 | ≥400 | ≥300 | ≥3.0 | ≥100 |
| 7 | HB011 | 93℃/3%KCl | 15-35 | ≥420 | ≥300 | ≥3.0 | ≥100 |
| 8 | HB016 | 93℃/3%KCl | 35-55 | ≥280 | ≥180 | ≥15 | ≥60 |
| 9 | HB017 | 93℃/3%KCl | 40-50 | ≥200 | ≥140 | ≥17 | ≥55 |
| 10 | HB018K | 50℃/0.84KCl | 50-70 | ≥240 | ≥170 | ≥12 | ≥55 |
| 11 | HB018 | 50℃/0.84KCl | 30-50 | ≥230 | ≥170 | ≥12 | ≥55 |
| 12 | HB010 | 93℃/3%KCl | 15-35 | ≥190 | ≥120 | ≥30 | ≥45 |
| 13 | HB022 | 43℃/0.05%KCl | 50-60 | ≥300 | ≥200 | ≥5.0 | ≥75 |
| 14 | HB023 | 43℃/0.05%KCl | 20-40 | ≥280 | ≥200 | ≥7.5 | ≥65 |
| 15 | HB024 | 43℃/0.05%KCl | 50-70 | ≥260 | ≥220 | ≥5 | ≥60 |
| 16 | HB013A | 43℃/0.05%KCl | 80-100 | ≥260 | ≥230 | ≥3.5 | ≥75 |
| 17 | HB025 | 50℃/0.84%KCl | 90-110 | ≥275 | ≥200 | ≥12 | ≥65 |
| 18 | HB026 | 93℃/3%KCl | 20-40 | ≥450 | ≥350 | ≥3.0 | ≥110 |
| 19 | HB808 | 50℃/0.84%KCl | 50-70 | ≥370 | ≥260 | ≥3.0 | ≥100 |
| 20 | HB019 | 50℃/0.84KCl | 45-65 | ≥230 | ≥180 | ≥12.0 | ≥55 |
| 21 | HB055 | 93℃/3%KCl | 130-150 | ≥220 | ≥160 | ≥12.0 | ≥55 |
| 22 | HB035 | 93℃/3%KCl | 50-100 | ≥100 | ≥60 | ≥42.0 | ≥35 |
| 23 | HBMM6 | 50℃/0.84%KCl | 70-100 | ≥260 | ≥230 | ≥10.0 | ≥60 |
| 24 | HBMM7 | 50℃/0.84%KCl | 90-120 | ≥270 | ≥240 | ≥9.0 | ≥65 |
| 25 | HBMM8 | 93℃/3%KCl | 100-150 | ≥280 | ≥250 | ≥5.0 | ≥65 |
Advantage of Hilbo Company:
Full range of product types, Ensure production capacity
We ave advanced die-casting, extrusion, forging, rolling, casting processing production line and precision testing equipment. Can produce a variety of types of magnesium alloy and magnesium alloy products, and developed a high-strength magnesium alloy extruded sheet. Through the purification of ordinary magnesium, magnesium can be raised up to 99.99% of high purity.
Cost advantage
Magnesium alloy casting production can customized as your requirement. the technical process is great, extrusion production required for a variety of bar, no need to purchase from abroad, extrusion molding products is easy molding, low energy consumption, saving production costs.
Workshop:
Product technology advantages
Engaged in magnesium smelting technology personnel with more than 15 years experience, from the selection of primary materials to smelting processing has a wealth of experience and mature management techniques.
We are in magnesium ingots, magnesium alloy extrusion products have technical research and development capabilities. We are come out in front in the Magnesium alloy production enterprises
Testing Equipment
Certificate:
We have attained ISO9001 and ISO14001 certificates, Standardize and improve the enterprise quality management system.
